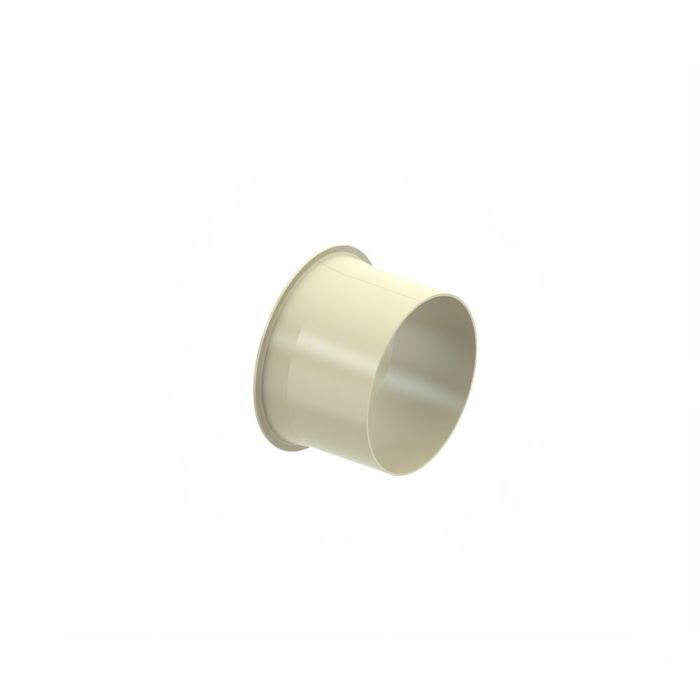

insertible pipe, diam. 100x1,5 mm
KMH item number
1011009e-1
100 mm lang, steel DC01, powder coated (RAL color), with earthing lugs
Availability
insertible pipe, diam. 100x1,5 mm, 100 mm lang, steel DC01, powder coated inside and outside (RAL color), with earthing lugs
| Remark | measurements for 2 mm piping |
|---|---|
| dimensions a | 100 mm |
| dimensions b | 25 mm |
| dimensions c | 96 mm |
| dimensions dlw | 99 mm |
| dimensions dn | 100 mm |
| coating | powder coated (RAL) |
| grounding lug | yes |
| length | 100 mm |
| material | DC01 |
| nominal width | 100 |
| material thickness | 1,5 mm |
| conductivity | yes |
| Commodity statistical number | 7306 30 77 |
| weight in kg | 0,3700 |
| Remark | mistakes and amendments reserved |
